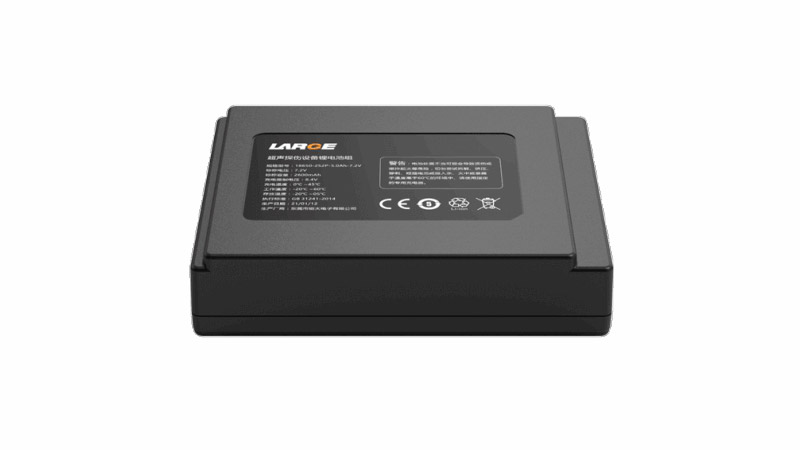

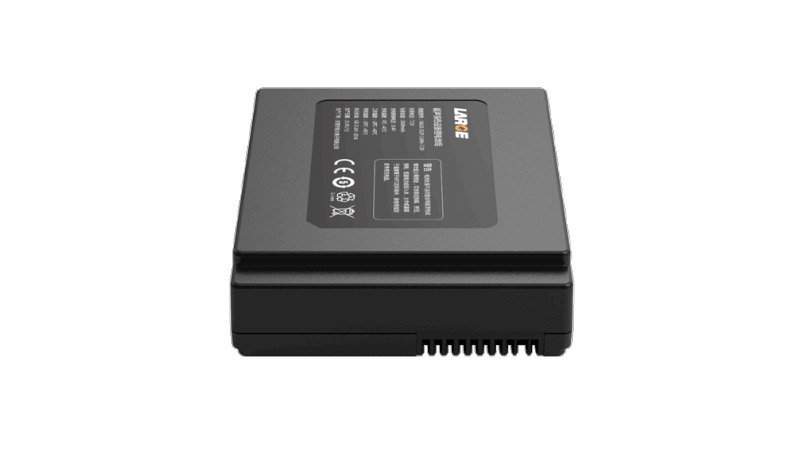

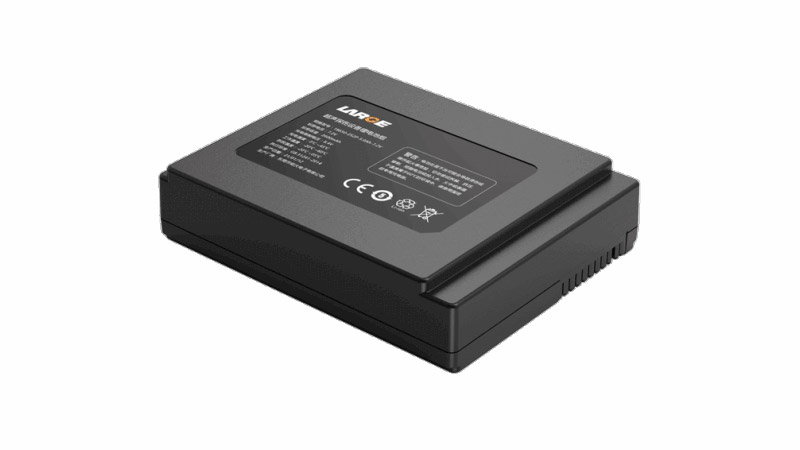

Lithium battery pack for ultrasonic flaw detection equipment

Product Number: 05DQ0052-01

Battery cell model: UR1865ZM2/2550mAh/3.6V

Battery specifications: 18650-2S2P-5.0Ah-7.2V

Product dimensions: 88.8*70.8*17.8mm(Max)

Nominal voltage: 7.2V

Nominal capacity: 5Ah

Charging voltage: 8.4V

Charging current: ≤2.4A

Discharge current: ≤2.5A

Discharge cut-off voltage: 6V

Finished product internal resistance: ≤220mΩ

Battery weight: 200g

Charging temperature: 0-45℃

Discharge temperature: -20℃ to 60℃

Storage temperature: -20 to +50℃ (for Xiaoyu, 1 month) – -20 to 40℃ (for less than 3 months) -20 to +20℃ (less than 12 months)

Battery packaging: Plastic casing

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
